Polar Geophysical Institute

Radiotomographic Facility
of Polar Geophysical Institute



Radiotomography PGI
  Description

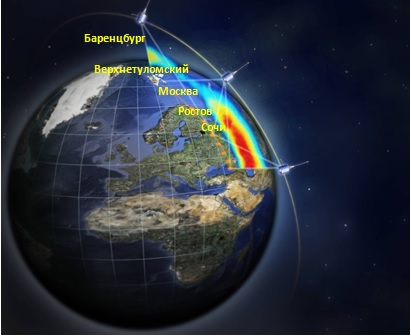

Function: recording to electronic memory of satellite radio signals at the frequencies of 150 MHz and 400 MHz at the receiving points along the meridian Spitsbergen archipelago – Kola Peninsula – Moscow – Rostov – Voronezh region – Sochi. Sampling frequency is 50 Hz. The receivers detect radio signals in the VHF-UHF range transmitted from Russian navigation satellites. When passing through the ionosphere, the signals undergo transformations, which depend on the ionospheric structure. Simultaneous registration of satellite signals by all receivers of the array provide their phase and amplitude in the points of ray crossing and reconstruct of the electron density distributions in the vertical plane above the array by means of tomographic inversion.
(more details...)
Data catalog
List of available satellite crosses and quicklooks of received signals
Contacts
Scientific adviser of the project: Prof. Evgeniy Tereshchenko
Head of laboratory: Dr. Roman Yurik
Quicklooks support: N.Yu.Romanova (romanova@pgi.ru)
